iPhone SQLite Database Structure

Note: Before you continue, you will need to install sqlite3 package from Cydia.

Note: The following guide assumes you are logged in to your iPhone using an SSH client. Google: iPhone connect via SSH

iPhone uses SQLite3 databases to store most of the important data, which you can easily view/modify/manage using sqlite3 shell command.

The main databases are:

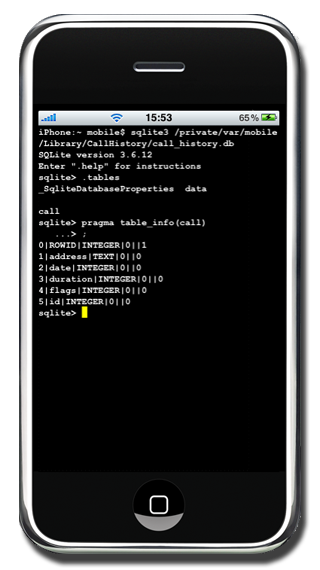

So, if we want to see their structure/contents, we can run a simple sqlite3 query from shell:



To get the tables contained in database "Envelope Index" (our emails database):

iPhone# sqlite3 /private/var/mobile/Library/Mail/Envelope\ Index

SQLite version 3.6.12
Enter ".help" for instructions
sqlite> .tables

mailboxes messages properties
message_data pop_uids threads

To see the table structure of table "messages":

sqlite> pragma table_info(messages);

0|ROWID|INTEGER|0||1
1|remote_id|INTEGER|0||0
2|sender||0||0
3|subject||0||0
4|_to||0||0
5|cc||0||0
6|date_sent|INTEGER|0||0
7|date_received|INTEGER|0||0
8|sort_order|INTEGER|0||0
9|mailbox|INTEGER|0||0
10|remote_mailbox|INTEGER|0||0
11|original_mailbox|INTEGER|0||0
12|flags|INTEGER|0||0
13|read||0||0
14|flagged||0||0
15|deleted||0||0
16|size|INTEGER|0||0
17|color||0||0
18|encoding||0||0
19|content_type||0||0

To get results of email messages that are not read, not deleted, ordered by descending order (latest first) , limited by 5 (5 latest results only):

sqlite> select * from messages where read='0' and deleted='0' order by ROWID desc limit 5;

To delete (permanently) the email message at row index 123:

sqlite> delete from messages where ROWID='123';

To change the message subject of the email message at row index 87:

sqlite> UPDATE messages set subject='sqlite test' where ROWID='87';

A similar usage with Objective-C / Cycript:

[[MailMessageLibrary defaultInstance] messagesMatchingQuery:@"select * from messages where read='0' and deleted='0' order by ROWID desc limit 5" options:nil];

More on sqlite queries: http://www.sqlite.org/docs.html



Elias Limneos








Posted on: 21-02-2010 15:07 by Elias Limneos

Post here any comments or questions you might have on the above.



Posted on: 01-03-2010 11:14 by George J

Excellent work! This was missing from like...everywhere.
a question: how can I access AddressBook\'s pictures?
There is a db AddressBookImages.sqlitedb which seems to store the contact\'s pictures.



Posted on: 01-03-2010 11:17 by Elias Limneos

iPhone:/User/Library/AddressBook root# sqlite3 AddressBookImages.sqlitedb
SQLite version 3.6.12
Enter \".help\" for instructions
sqlite> .tables
ABImage _SqliteDatabaseProperties
sqlite> pragma table_info(ABImage);
0|ROWID|INTEGER|0||1
1|record_id|INTEGER|0||0
2|format|INTEGER|0||0
3|crop_x|INTEGER|0||0
4|crop_y|INTEGER|0||0
5|crop_width|INTEGER|0||0
6|crop_height|INTEGER|0||0
7|data|BLOB|0||0


You will see that the data fields contains images in binary format. To see them you will need to open this data as image.
I will post a guide as a seperate chapter here, as well.
